Exothermic Welding – Types of Joints
Exothermic Welding Joints Powder is made from Modern Technology and it not only helps to Weld Copper to Copper products but it also helps to Joint Copper to Steel, Copper to Brass, Gunmetal to Copper, etc.
Our Exothermic Welds product can join any two metals. We provide high-quality products at a very reasonable rate.
Exothermic Weld is made from Modern Technology and it not only helps to Weld Any Two Metals products but it also helps to have Permanent Joint between:
- Copper to Steel
- Copper to Brass
- Gunmetal to Copper etc
Exothermic Weld:
Our Exothermic Weld Powder Product can join any two metals. We provide high-quality products at a very reasonable rate. We are very professional in this field having more than 10 years of experience in Manpower.
Our Exothermic Weld is recognized worldwide. We are an ISO 9001:2008 Certified Company. Our Company is also Verified by Crisil.
Our Exothermic Weld Powder is also Tested and Certified by CPRI – Bangalore for Short Circuit Current Test.
Exothermic weld is a simple, efficient, high-quality metal connection method, Exothermic weld by aluminothermic reaction generated by high temperature to make completely molten metal, in order to achieve high-quality weld effect.

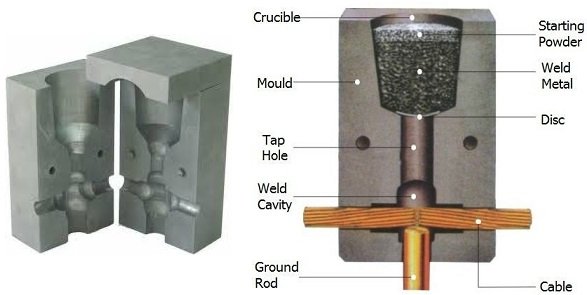

This reaction is conducted in the graphite mould of high-temperature resistance, exothermic reaction process takes only a few seconds.
An exothermic weld has higher mechanical strength than other forms of weld, and excellent corrosion resistance .It is also highly stable when subject to repeated short-circuit pulses, and does not suffer from increased electrical resistance over the lifetime of the installation.
However, the process is costly relative to other welding processes, requires a supply of replaceable moulds, suffers from a lack of repeatability, and can be impeded by wet conditions or bad weather (when performed outdoors).
Types of Exothermic Weld Joint/Connection -
| Cable to Cable Connection | Cable to Rod Connection | Cable to Tape OR Strip Connection |
|
|
 |
| Copper Cable to Steel Connection | Steel to Tape OR Strip Connection | Earth Rod to Steel Connection |
 |
 |
 |
| Earth Rod to Earth Rod Connection | Strip to Earth Rod Connection | Copper Tape to Copper Tape Connection |
 |
 |
 |

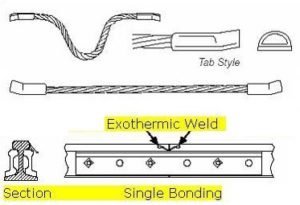

| ReBar to ReBar Connection | Copper Electrode Connection With Copper Strip | Rail Signal Bonds and TLJB Bonds |
 |
 |
 |
